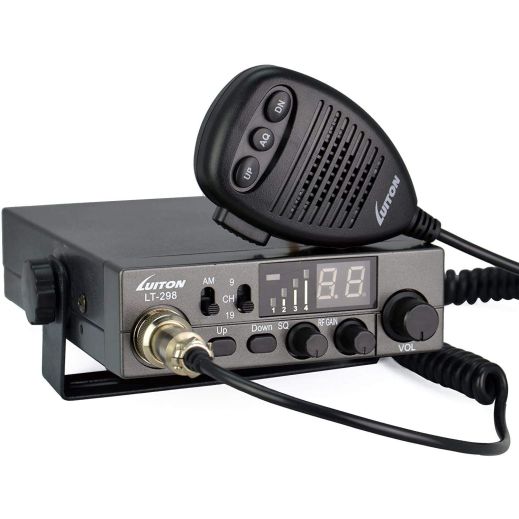

LUITON 40-Channel CB Radio LT-298 Compact Design with External Speaker Jack, Large Easy to Read LED Display Compatible with 12-24 Voltage
- LUITON LT-298 CB Radio is a compact and affordable full 40 channel CB radio featuring CB with an easy-to-read large Led Digital display.
- This compact durable radio accepts 12-24v Power Source. Work for Both Car and Truck
- Monitor your transmit power and check the relative strength of incoming transmissions with the built-in Signal/RF Power Indicator
- LT-298 CB Radio is ideal for CB users seeking an affordable radio with CB, Instant Channel 9 Emergency Button, Channel Up/Down Buttons, and S/RF Meter.
- Built-in External Speaker Jack allows connecting to an optional external speaker. Included in the box: CB Radio, 4 Pin Electret Microphone, Mounting Hardware, Mounting Bracket, User's Manual, 1-Year Warranty.
Guarantee
ID Theft Protection
Purchase Guarantee
Packlist:
LT-298 Cb Radio x 1
Power Adapter x 1
Microphone x 1
Mounting Bracket x 1
Mounting Hardware x 1
MicroPhone Holder x 1
User Manual x 1
Feature:
Stable quality as Uniden PRO520XL;
4 W RF power
40 AM channels
Channel 9
Mode AM switch
With adjustable ASQ
RSSI indication (4-digit LED indication)
2 Digit channel indication
RF gain control
Volume with power ON/OFF control
TX/RX LED indication
Up/Down microphone
Front microphone plug
Jack for external speaker
Manual Squelch
ANT Connector
FREQ. expanding (A,B,C,D,E,F,POLAND and NZ band)
Technical Indicators:
Channels : 40 AM
Frequency range : 26.960 27.400MHz
Frequency control : P.L.L.
Frequency Tolerance : 0.005%
Operating temperature : -20/+55C
DC input voltage : 12-24V DC
Size : 115 (L) x 38 (A) x 150 (P) mm
Weight : 0.8 kg
Receiver:
System : CPU controlled Double conversion super
IF : 1 10.7 MHz / 2 450 KHz
Sensitivity : -120dBm for 12dB SINAD (FM)
-107dBm for 12dB SINAD (AM)
Audio output : @10% THD 2.5W at 8 ohm
Audio distortion : <8% at="" 1="">
Image rejection : 65dB
Adjacent channel : 85dB
Signal ise ratio : 45dB
Current drain : 220mA (stand-by)
Transmitter:
System : CPU controlled P.L.L. synthesizer
Maximum RF power : 4W -10W
Modulation : 85% to 90% (AM)
2KHz 0.2 KHz (FM)
ANT impedance : 50 ohm unbalanced
Current drain : 1500mA (at no modulation)
Additional Information
Manufacturer: LUITON
Model: 697478130003
Storkz Item #: S20918903
Product Dimensions: 12.2 X 6.1 X 3.1 inches
