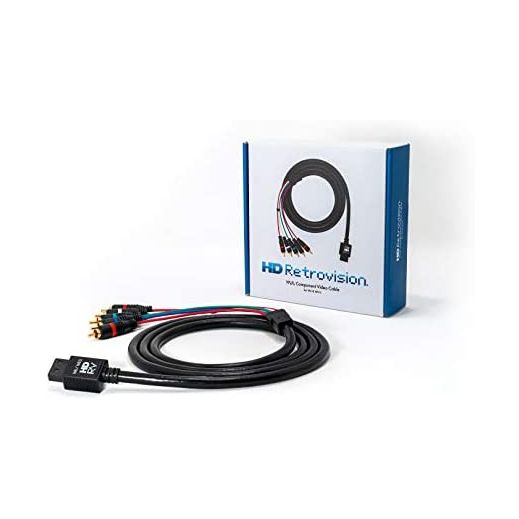

HD Retrovision Wii/Wii U Premium YPbPr Component Video Cable

Use these high-quality cables to connect your Wii or Wii U console to the YPbPr component video inputs on your TV or other video equipment. These cables are properly engineered and constructed to deliver the best analog video & audio out of your Wii or Wii U console. The fully shielded design eliminates audio and video crosstalk, while the 75O (75 ohm) impedance effectively transmits the full video detail even at 1080p resolutions.

***WARNING*** for Wii consoles running in 480i or 576i modes only:
Certain Virtual Console titles require your TV or monitor to support “240p” (NTSC/60Hz regions) and/or “288p” (PAL/50Hz regions) over its YPbPr input(s) in order to use this product in those scenarios. If this a concern for you, then please test your equipment using HD Retrovision's 240p/288p Compatibility Test prior to purchasing. Some titles allow for overriding this limitation by accessing the Operating Guide via the Wii Remote’s HOME button and then simultaneously pressing Z+A+2 on the Wii Remote & Nunchuk, such that a confirmation *DING* is heard.

Cable Specifications:
· Length: 6 feet (1.8 meters) nominal
· Impedance: 75O (75 ohm) nominal
· Shielding: Aluminum Mylar w/ Copper Spiral
· RoHS Compliant

Wii Supported Video Standards:
· CEA-770.2-D (240p60, 480i60, 480p60)
· ITU-R BT.1700 (288p50, 576i50)

Wii U Supported Video Standards:
· CEA-770.2-D (480i60, 480p60)
· CEA-770.3-E (720p60, 1080i60)
· ITU-R BT.1700 (576i50)
· SMPTE 274M (1080p60)

*NOTE: "60" implies both 60Hz and 59.94Hz.
